Panel Antennas
Panel antenna for 5G, 4G, 3G, and 2G outdoor and Indoor coverage.Description

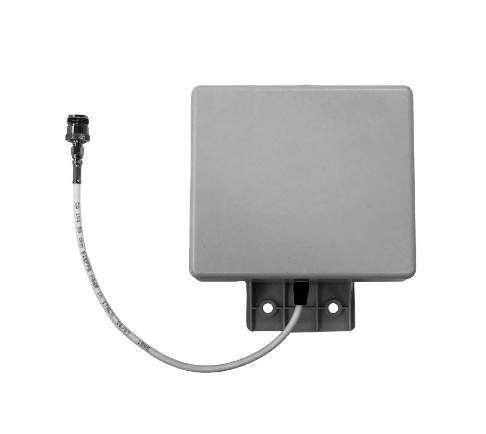

7dBi Indoor Panel Antenna
The Coiler PA-0727-8 directional antenna is a cost effective antenna solution for indoor & outdoor supports 5G, 4G, 3G and 2G coverage, wiht a slim & Light stylish design recommend for diverse type of environments.
Supports 5G, 4G, 3G and 2G frequency.
IP 65 waterproof design. Protection from humidity and moisture.
30 cm N (F) jumper, to simplify connection with the booster or coaxial cable.
Support Indoor and Outdoor installation.

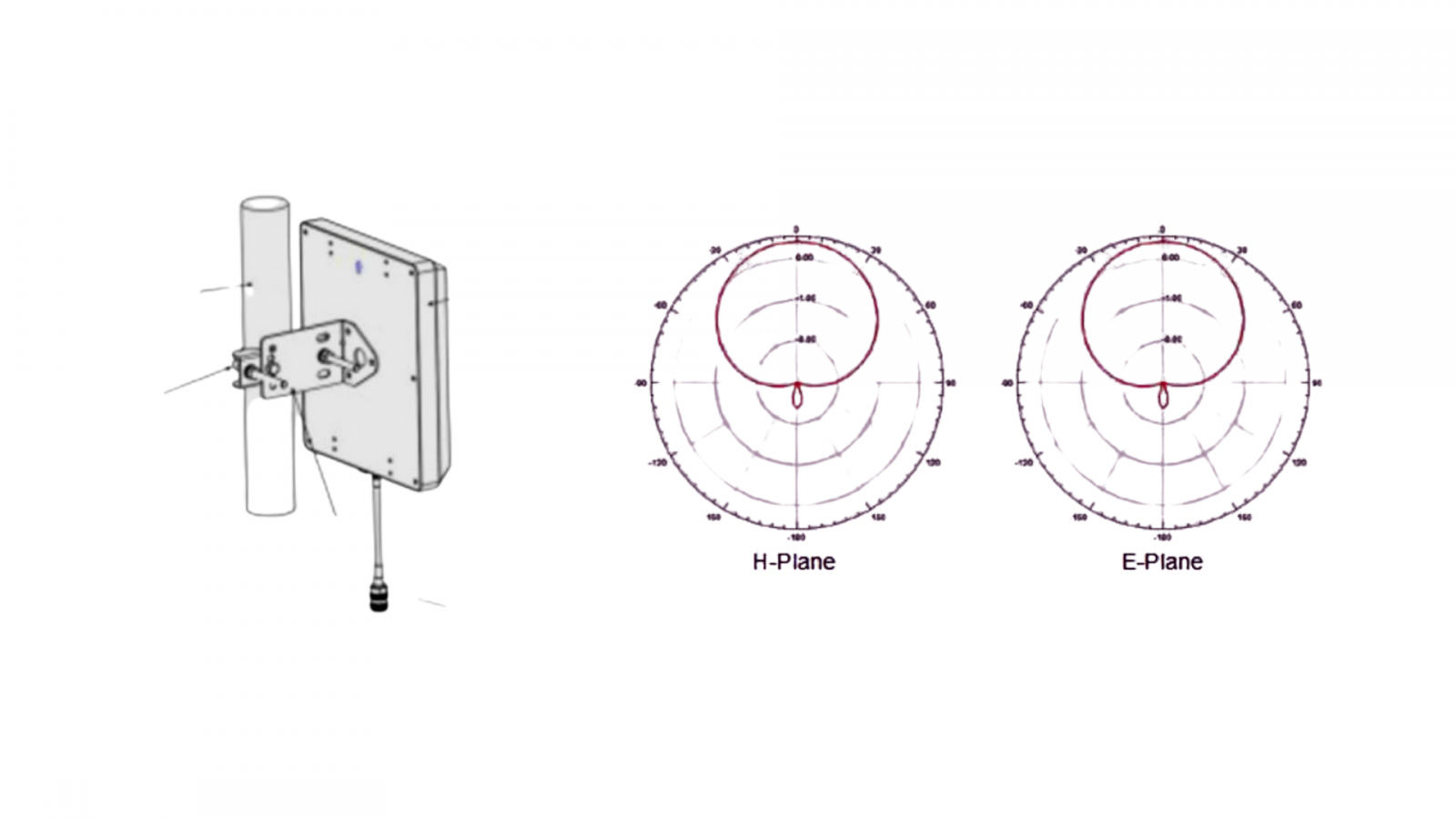

.png)
Product Specification
| Model | PA-0727-8 | |||
| Frequency Range | 698~ 806 MHz | 806~960 MHz | 1710 ~ 2700 MHz | 2300 ~ 2700 MHz |
| Gain | 5 dBi (+/- 1) | 5dBi (+/-1) | 7dBi (+/-1) | 7dBi (+/-1) |
| Impedance | 50 Ω | |||
| Beamwith Vertical (º) | 90±10 | 90±10 | 75±10 | 75±10 |
| Beamwith Horizontal (º) | 80±10 | 80±10 | 50±10 | 50±10 |
| Power | 50 w | |||
| Dimensions | 165x155x48 mm | |||
| weight | 0.37 Kg | |||
| Connector type | N (Female) / 65 IP | |||
| Temperature | -40 ~ +55 ⁰C | |||
