Omni Antenna
Indoor ceiling antenna for 5G, 4G, 3G, 2G, iDEN, and Tetra.Description

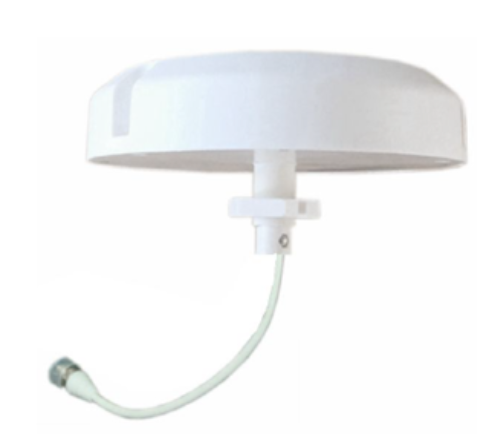

3dBi Indoor Ceiling Antenna
The Coiler ICA-0735-3.5NF Indoor Antenna is an omnidirectional ceiling antenna that supports multi-system installations such as iDEN, Tetra, GSM, UMTS, LTE and 5G NR with different frequency bands from 617~3800MHz. Lightweight, compact and easy to install, offers 3dBi of gain ideal for installation in larger indoor areas.
Supports 5G, 4G, 3G, 2G, iDEN and Tetra Frequency.
Frequency Range 617~3800MHz
30 cm N (F) jumper, to simplify connection with the booster or coaxial cable.
Provide 3.5~4dBi Gain (depending on the frequency)

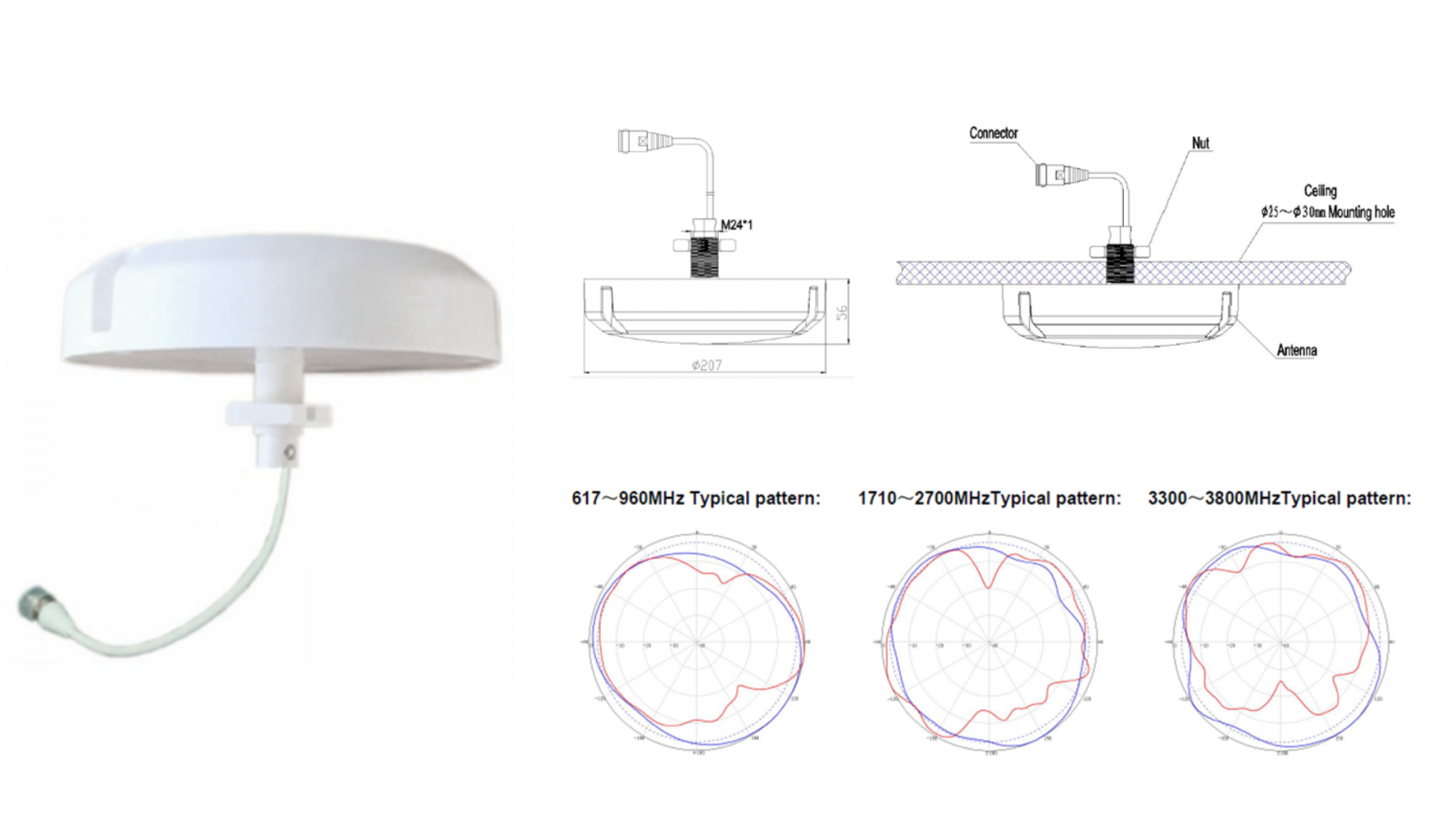

Product Specification
| Model | PA-0727-8 | |||
| Frequency Range | 617~ 960 MHz | 1710~2700 MHz | 3300 ~ 3800 MHz | |
| Gain | 3.5 dBi (±1) | 4dBi (±1) | 4dBi (±1) | |
| Impedance | 50 Ω | |||
| Beamwith Vertical (º) | 360º | |||
| Beamwith Horizontal (º) | 90º | 65º | 50º | |
| Power | 50 W | |||
| Dimensions | 213x168x204 mm | |||
| weight | 0.6 Kg | |||
| Connector type | 4.3-10 (F) | |||
| Temperature | -40 ~ +60 | |||
