Power Splitter 50W
Power Splitter applications in the field of 600-3800MHz supports 50W handling powerDescription

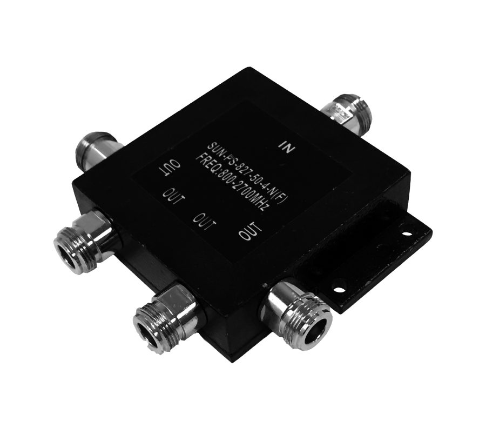

Power Splitter
The power splittera has been designed for various wireless signal deployment applications such as iDEN, Tetra, GSM, UMTS, LTE and 5G NR, the two-way, three-way and four-way splitter equally distributes the signal. More over it is suitable for multi-band distributed antenna system applications. Supported frequency range 600-3800MHz.
Supports 600~ 3800 MHz frequency.
Best indoor installation solution for DAS systems
Minimal loss
multi-system installations such as iDEN, GSM, UMTS, LTE, 5G NR, and Tetra
Product Specification
| Model | ISP-638-50-2N | ISP-638-50-3N | ISP-638-50-4N | |
| Number of ways | 2 | 3 | 4 | |
| Insertion loss | 3dB | 5. 2 dB | 6 dB | |
| Isolation (dB) | >= 20 | >= 18 | >= 16 @617~698Mhz >= 18 @698~3800Mhz |
|
| Beamwith Horizontal (º) | 80±10 | 80±10 | 50±10 | |

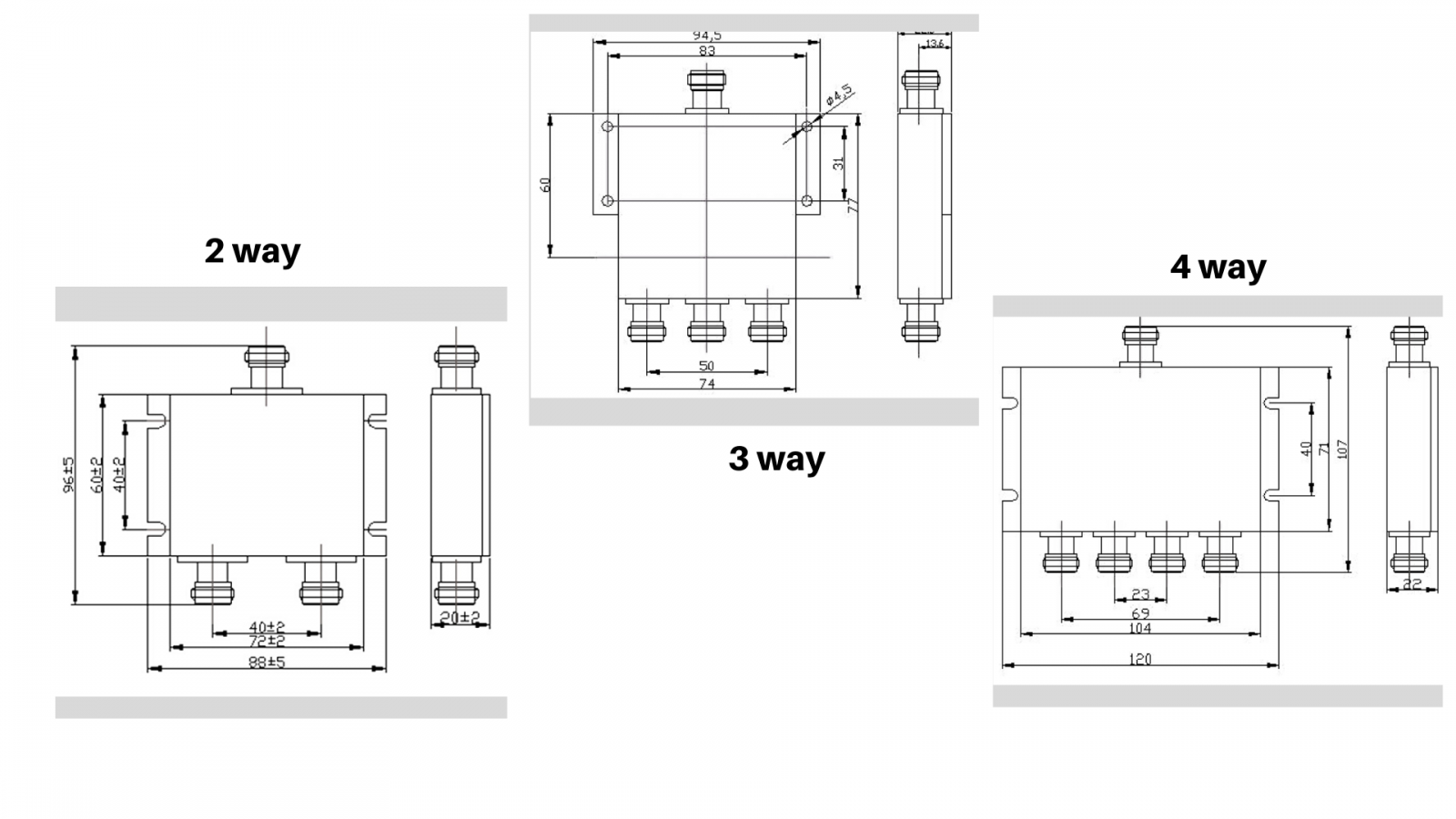

| Dimensions | 60*72*20 | 77*74*22 | 104*71*22 | |
| Power | 50 W | |||
| Connector type | N (Female) | |||
| Temperature | -35 ~ +65 | |||
