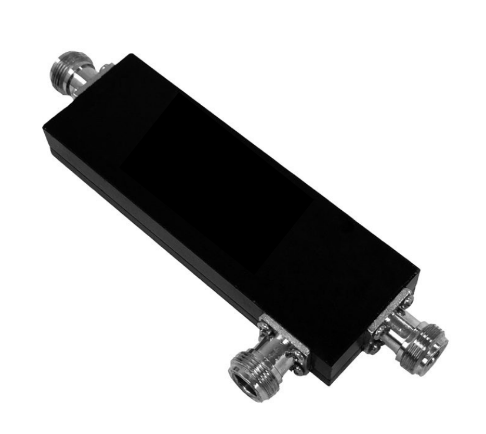

500 W Power Splitter
The Power Splitter handling power is 500 W, available for more regular RF connector as N(F), DIN (F), 4.3.10 (F)Description
Power Splitter
The power splitter has been designed for various wireless signal deployment applications such as iDEN, Tetra, GSM, UMTS, LTE and 5G NR, Customer can choice the two-way, three-way and four-way splitter equally distributes the signal.
Provides three basic deployments for the most commonly used RF interfaces (N, DIM, and the most advanced 4.3.10) with feeder reduction.
More over it is suitable for multi-band distributed antenna system applications. Supported frequency range 600-3800MHz.
Supports 600~ 3800 MHz frequency.
Best indoor installation solution for DAS systems
Handling Power 500 W
multi-system installations such as iDEN, Tetra GSM, UMTS, LTE and 5G NR
Product Specification
| Frequency | 600 ~ 3800 MHz | |||
| Insertion loss | <= 3.6 dB | <= 5. 6 dB | <= 6.8 dB | |
| Number of ways | 2 | 3 | 4 | |
| Splitter Type N (F) Part Number | ISP-638-500-2NF | ISP-638-500-3NF | ISP-638-500-4NF | |
| Splitter Type DIN (F) Part Number | ISP-638-500-2DF | ISP-638-500-3DF | ISP-638-500-4DF | |
| Splitter Type 4.3.10 (F) Part Number | ISP-638-500-2mDF | ISP-638-500-3mDF | ISP-638-500-4mDF | |
| Handling Power | 500 W | |||
| Impedance | 50 Ω | |||
| Connector type | IP 65 | |||
| Temperature | -30 ~ +65 ⁰C | |||
.png)

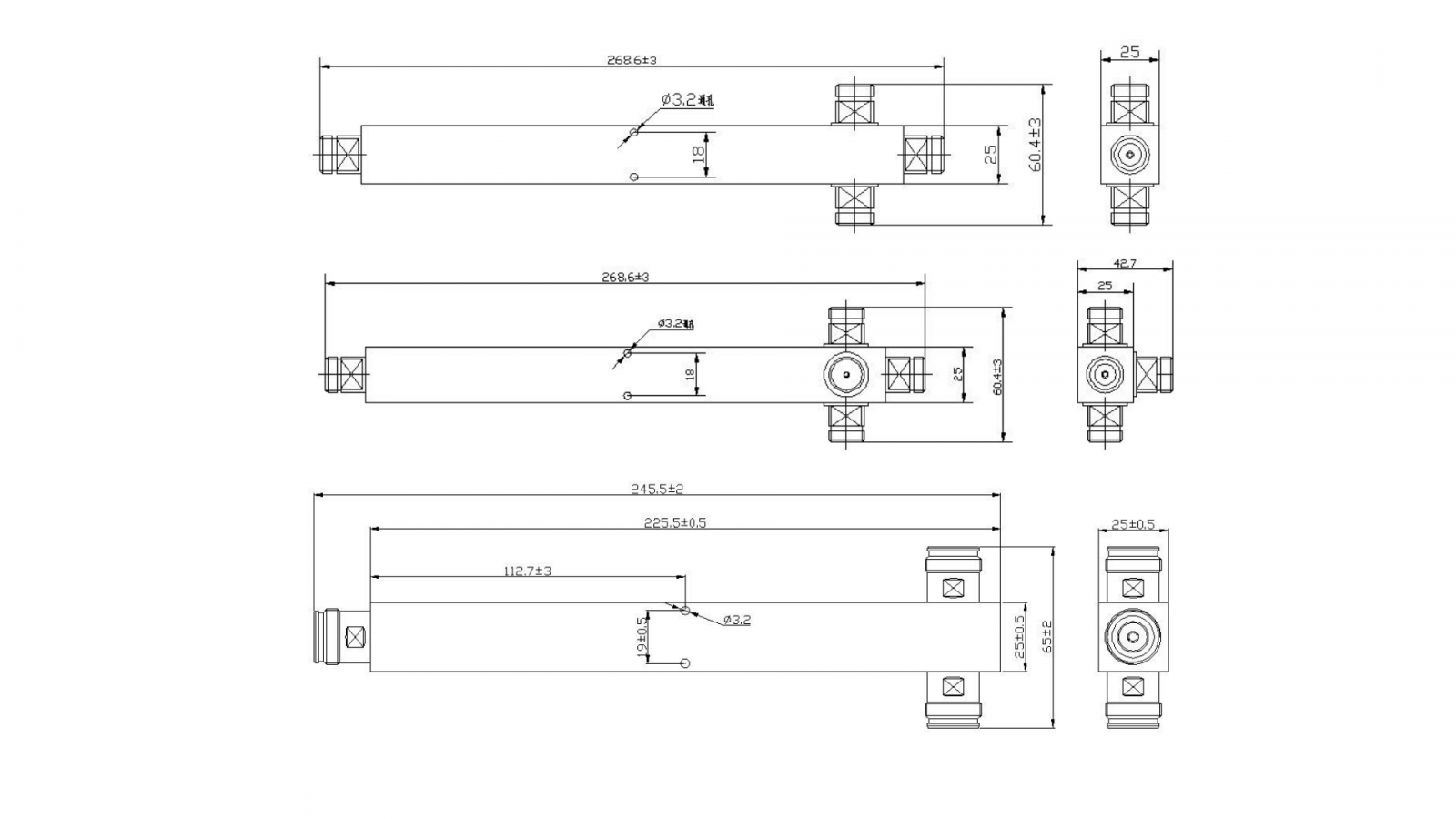

CONNECTOR TYPE N(F) / 2 WAYS / 3 WAYS / 4 WAYS
.png)

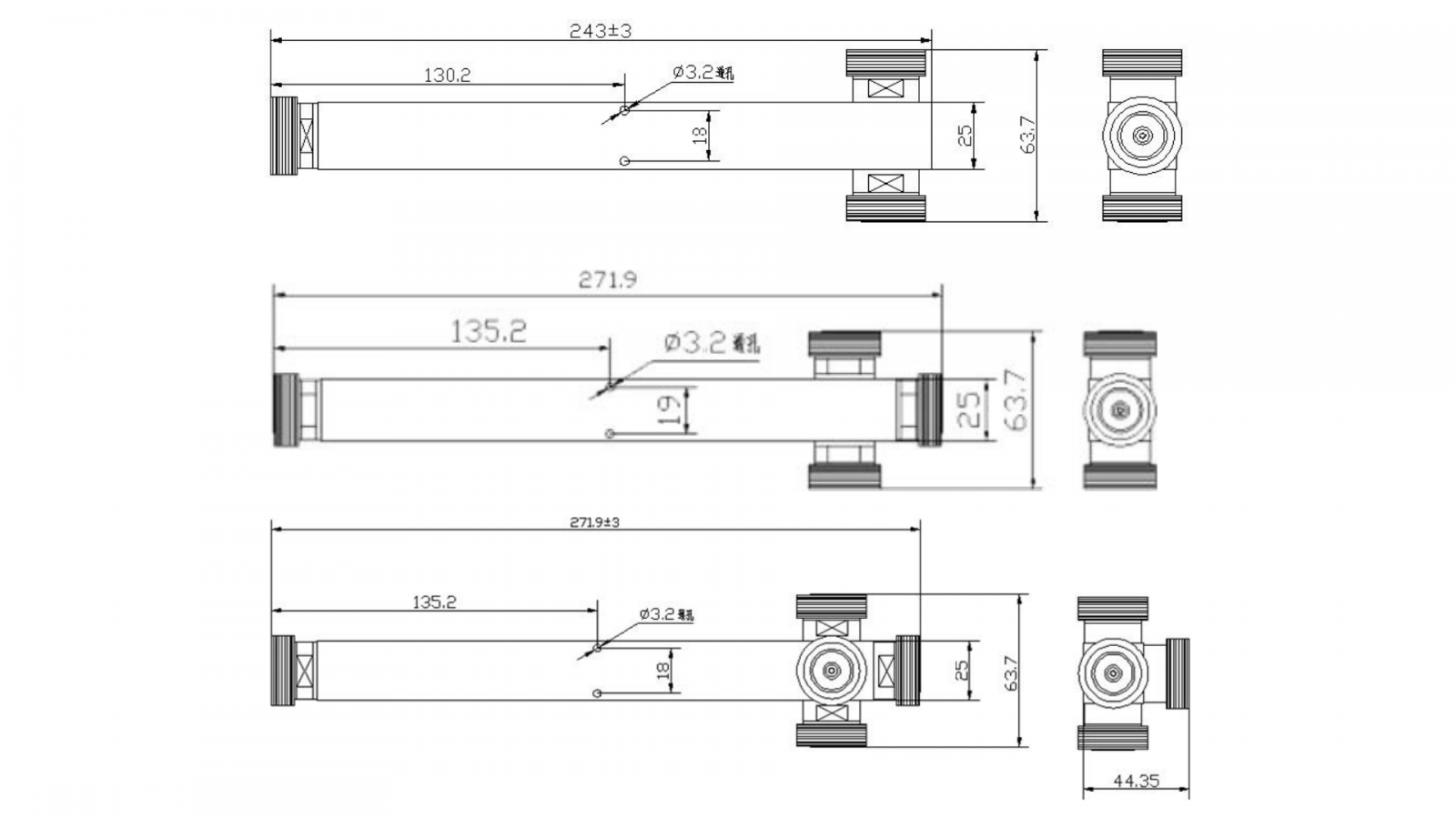

CONNECTOR TYPE DIN (F) / 2 WAYS / 3 WAYS / 4 WAYS

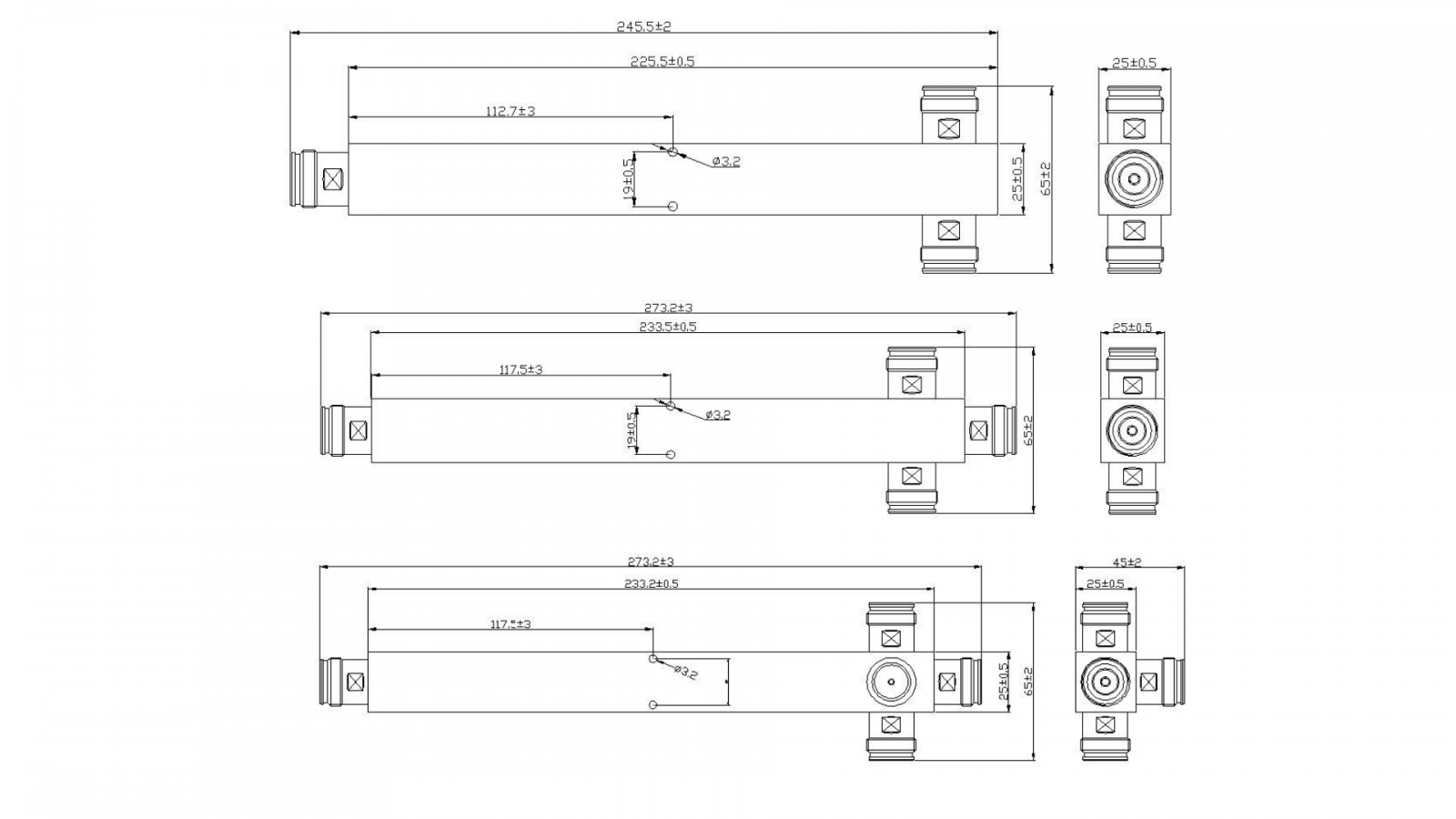

CONNECTOR TYPE 4.3.10 (F) / 2 WAYS / 3 WAYS / 4 WAYS
