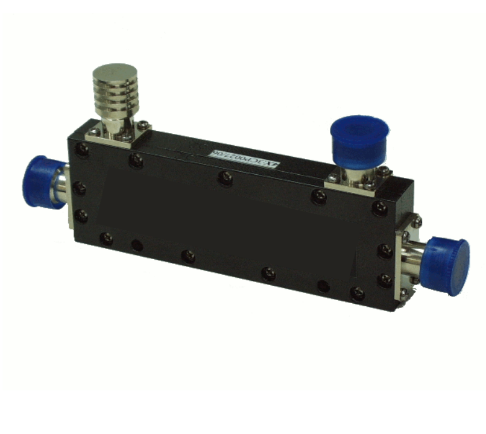

300 W Hybrid Coupler
Hybrid Coupler power 300W, Available RF connector for N(F), DIN (F), 4.3.10 (F)Description
Hybrid Coupler
The Hybrid Couple has been designed for various wireless signal deployment applications such as iDEN, Tetra, GSM, UMTS, LTE and 5G NR, the two-way, three-way and four-way splitter equally distributes the signal.
Provides three basic deployments for the most commonly used RF interfaces (N, DIM, and the most advanced 4.3.10) with feeder reduction.
More over it is suitable for multi-band distributed antenna system applications. Supported frequency range 600-3800MHz.
Supports 600~ 3800 MHz frequency.
Best indoor installation solution for DAS systems
Handling Power 300 W
multi-system installations such as iDEN, Tetra, GSM, UMTS, LTE and 5G NR,
Product Specification
| Frequency | 600 ~ 3800 MHz | |||||||
| Coupling Value (dB) | 6 | 8 | 10 | 13 | 15 | 20 | 30 | |
| Coupling Tolerance (dB) |
±1.2 |
±1.2 |
±1.5 |
±1.5 |
±1.5 |
±1.7 |
±1.8 |
|
| Insertion Loss (dB) | <=1.95 | <=1.7 | <=1.0 | <=0.9 | <=0.7 | <=0.5 | <=0.3 | |
| Isolation (dB) | >=22 | >=23 | >=26 | >=28 | >=30 | >=35 | >=43 | |
| Handling Power | 300W | |||||||
| Impedance | 50 Ω | |||||||
| Connector Type | IP 65 | |||||||
| Temperature (。C) | -30 ~ + 65 | |||||||
| RF Connector | N(F) | DIN (F) | 4.3-10 (F) | |||||||
 Type.jpg)

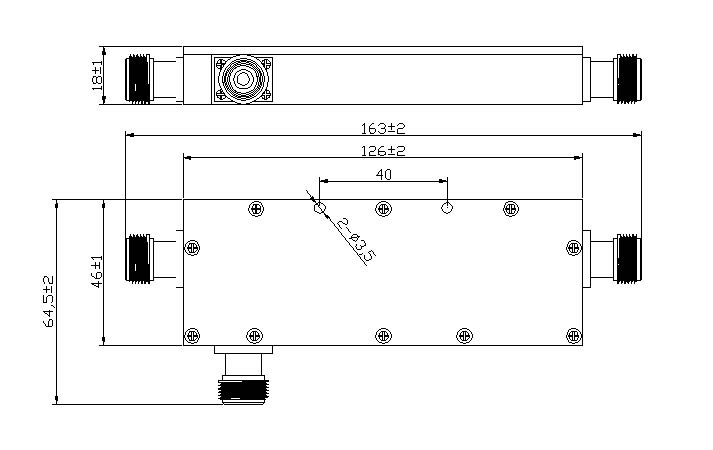

CONNECTOR TYPE N(F) / 2 WAYS / 3 WAYS / 4 WAYS

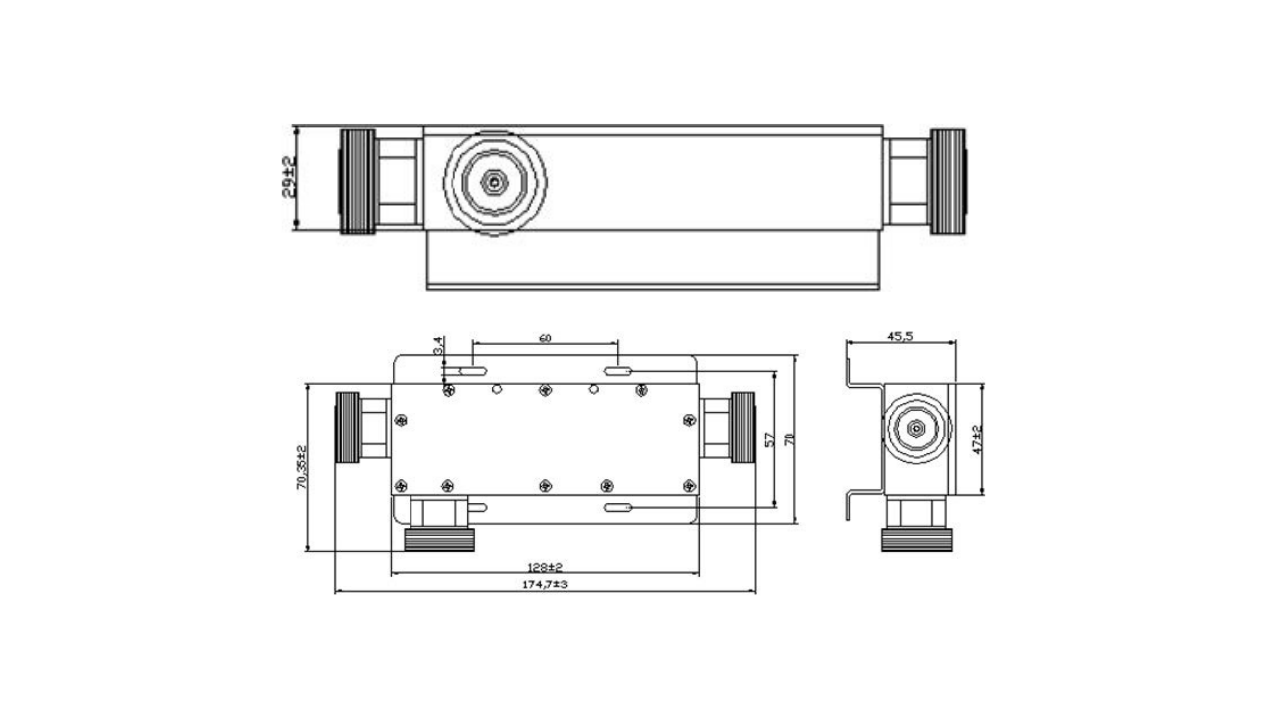

CONNECTOR TYPE DIN (F) / 2 WAYS / 3 WAYS / 4 WAYS

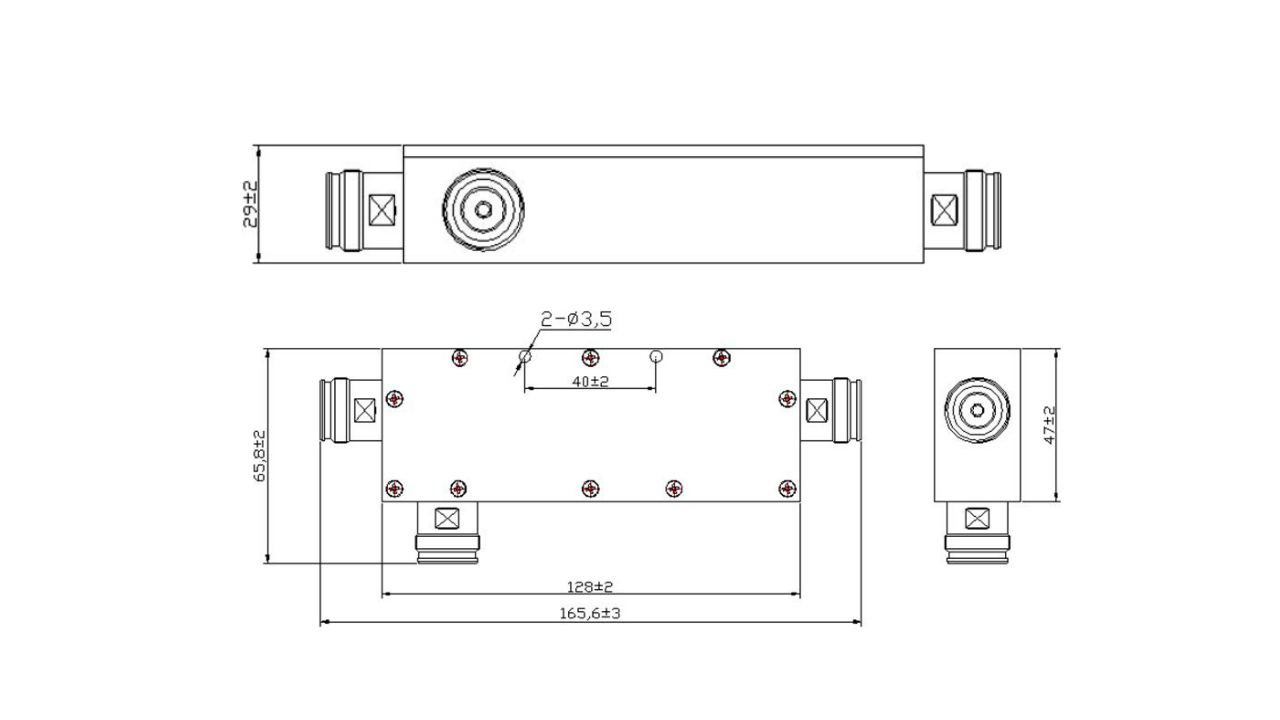

CONNECTOR TYPE 4.3.10 (F) / 2 WAYS / 3 WAYS / 4 WAYS
