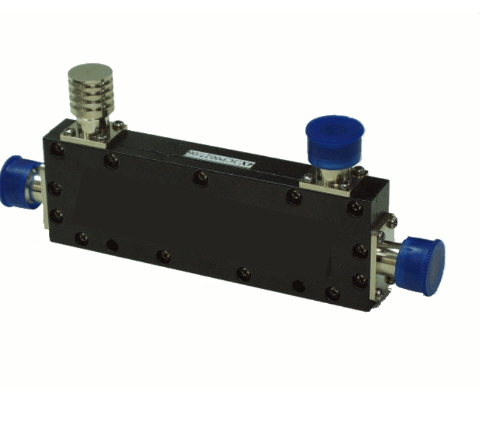

Low PIM Directional Coupler
Low PIM Directional Coupler (coupling range 6~30 dB) 600~ 3800 MHz.Description

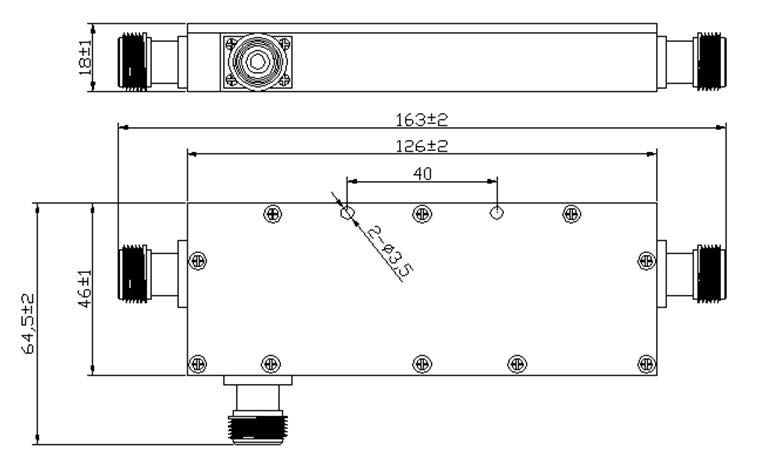

Low Pin Directional Coupler
The directional Couple has been designed for various wireless signal deployment applications such as iDEN, Tetra, GSM, UMTS, LTE and 5G NR. Different coupling values (6~30dB) can be selected according to the design requirements. It supports frequency range 600-3800MHz.
Supports 600~ 3800 Mhz frequency.
Different coupling values (6~30dB) can be selected according to the design requirements.
IP65 waterproof grade design
Product Specification
| Frequency | 600 ~ 3800 MHz | |||||||
| Coupling Value (dB) | 6 | 8 | 10 | 13 | 15 | 20 | 30 | |
| Coupling Tolerance (dB) |
±1.2 |
±1.2 |
±1.5 |
±1.5 |
±1.5 |
±1.7 |
±1.8 |
|
| Insertion Loss (dB) | <=1.95 | <=1.7 | <=1.0 | <=0.9 | <=0.7 | <=0.5 | <=0.3 | |
| Isolation (dB) | >=22 | >=23 | >=26 | >=28 | >=30 | >=35 | >=43 | |
| Handling Power | 300 W | |||||||
| Impedance | 50 Ω | |||||||
| Connector Type | IP 65 | |||||||
| Temperature (。C) | -30 ~ + 65 | |||||||
| RF Connector | N(F) | |||||||
